Focus on the VM16 ventilation membrane

VM16 venting membranes for automotive headlamps

The VM16 is the self-adhesive venting membrane in the Gergovent line designed specifically for automotive headlamps.
Its two-layer structure (ePTFE and polyamide) combines ventilation performance with mechanical strength, while using 96% less ePTFE than comparable membranes on the market.

Diagram of the VM16 membrane: Side Protect frame, dual-layer ePTFE and polyamide membrane, adhesive tape

Technical features

Unlike equivalent membranes on the market, VM16 venting membranes reduce ePTFE consumption by 96% for the same performance and the same ventilation surface area.
VM16 membranes therefore not only help to optimise and reduce costs, but also massively reduce the use of PFAS.

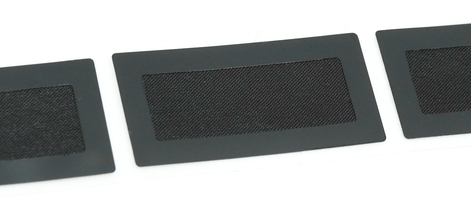

Black VM16 Ventilation Membrane with Side Protect Technology
  • 200 Bar Kärcher® test :

Thanks to Side Protect technology, the VM16 membrane offers excellent resistance to very high-pressure spraying (200 bar).

  • Mechanical resistance :

Thanks to its two-layer composition, the VM16 venting membrane combines both ventilation performance and mechanical resistance (up to >40N).

Would you like to find out more about our venting membrane solutions? Contact us!
